A precision compound press tool designed for efficient sheet metal blanking and piercing operations with accurate component positioning and repeatable production.
A precision compound press tool developed for performing punching and blanking operations in a single press stroke. The design focuses on accurate alignment, reliable tool movement and repeatable sheet metal production.
Compound Press Tool
Combined punching and blanking operation
Sheet Metal Component Processing
Precision, repeatability and tool life
High-accuracy sheet metal production
The compound press tool is engineered with a focus on accuracy, durability, alignment and reliable production performance.
Accurate punching geometry for consistent component quality and repeatable production.
Blanking and piercing operations are performed together in a single press stroke.
Strong upper and lower tooling structures provide stability during repeated press operations.

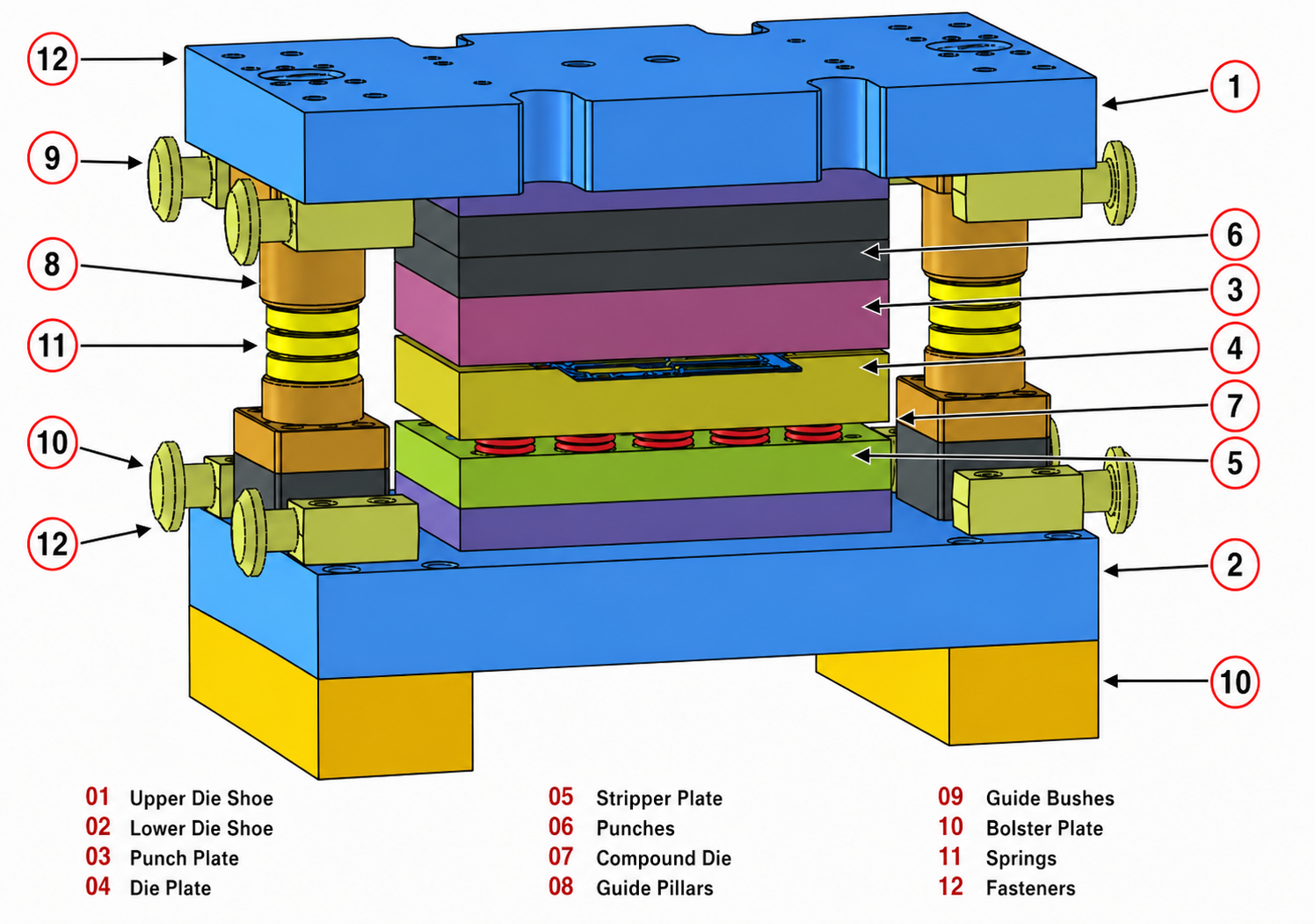

Guide pillars and bushes maintain proper alignment between punches and die components.
Proper punch and die clearance supports clean cutting and helps minimize tool wear.
Critical punch and die elements can be replaced when maintenance or refurbishment is required.
The tool layout allows easier inspection, servicing and replacement of components.
The design is developed with practical manufacturing, assembly and production requirements.
A structured engineering approach was followed to develop an accurate, practical and manufacturing-ready compound press tool.
Developed the overall tooling concept based on component geometry and production requirements.
Created detailed 3D CAD models of the complete compound press tool assembly.
Designed punching and die elements for accurate blanking and piercing operations.
Planned component positioning and material usage for efficient sheet metal processing.
Considered critical clearances and tolerances to support reliable cutting performance.
Developed guide and alignment elements for controlled movement of the tooling assembly.
Checked component interaction, movement and assembly clearance within the complete tool.
Prepared manufacturing documentation, component details and bill of materials for production.
Compound press tooling is suitable for precision sheet metal production where punching and blanking operations are required with repeatable accuracy.
Producing accurate sheet metal blanks with consistent dimensions.
Creating precise holes and profiles in sheet metal components.
Suitable for manufacturing brackets, plates and other automotive sheet metal parts.
Used for precision stamped parts and mounting components for electrical products.
Suitable for producing small and medium sheet metal components used in appliances.
Efficient production of brackets, mounting plates and similar precision parts.
Manufacturing various precision hardware and sheet metal components.
Designed for repeatable operations where consistent production output is required.
The compound press tool was developed with a focus on precision, repeatability, easy maintenance and practical manufacturing requirements.
